Scope

All those applications that require a small, high-performance, vibration-free transformer with low stray field, lower heating, easy to mount and with practically zero magnetostrition noise.

Manufacturing series

• TT Series (Standard on demand) from 15 to 5000 VA, 230V input, output on demand.

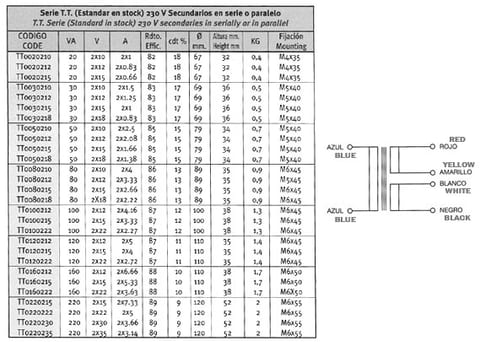

• TT Series (Standard in stock) from 20 to 200VA, 230V input, double output to connect in series or parallel.

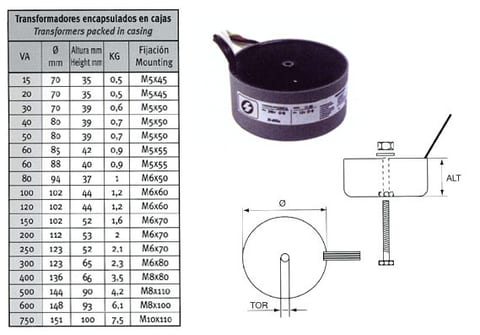

• TE Series (Resin Encapsulated) from 15 to 750VA, 230V input, output on demand.

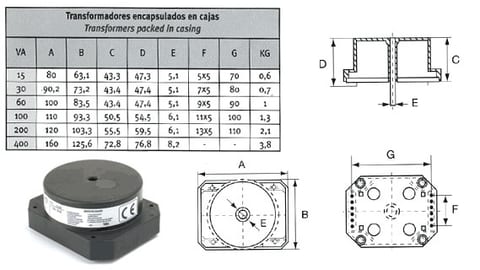

• TCI Series (CI Encapsulation) from 15 to 400VA, 230V input, output on demand.

On demand

• Electrostatic shielding
• Quick connect power strips
• Thermal protection
• Materials for high thermal classes
• Electromagnetic shielding
• Internal encapsulation for fixing systems
• Placing connectors and terminals

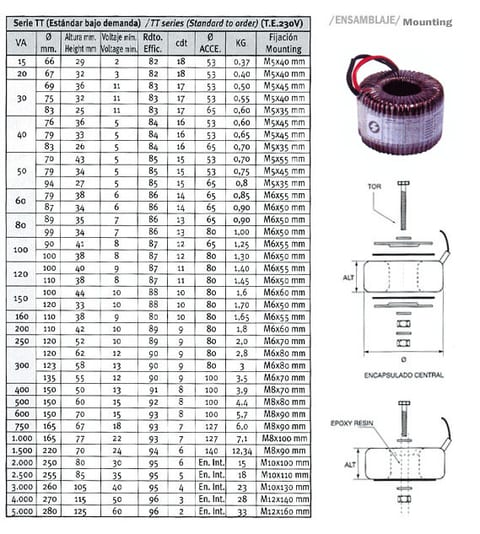

TT SERIES (Standard on demand)

This series is designed for a primary of 230V and a secondary of any voltage and power between 20VA and 5,000VA, according to the following table, but on request we can manufacture other voltages, add screens, thermal protections, etc.
The standard lengths of the outputs are 16cm, up to 500VA and 20cm for 600 to 1,000W and 25cm for higher powers.
